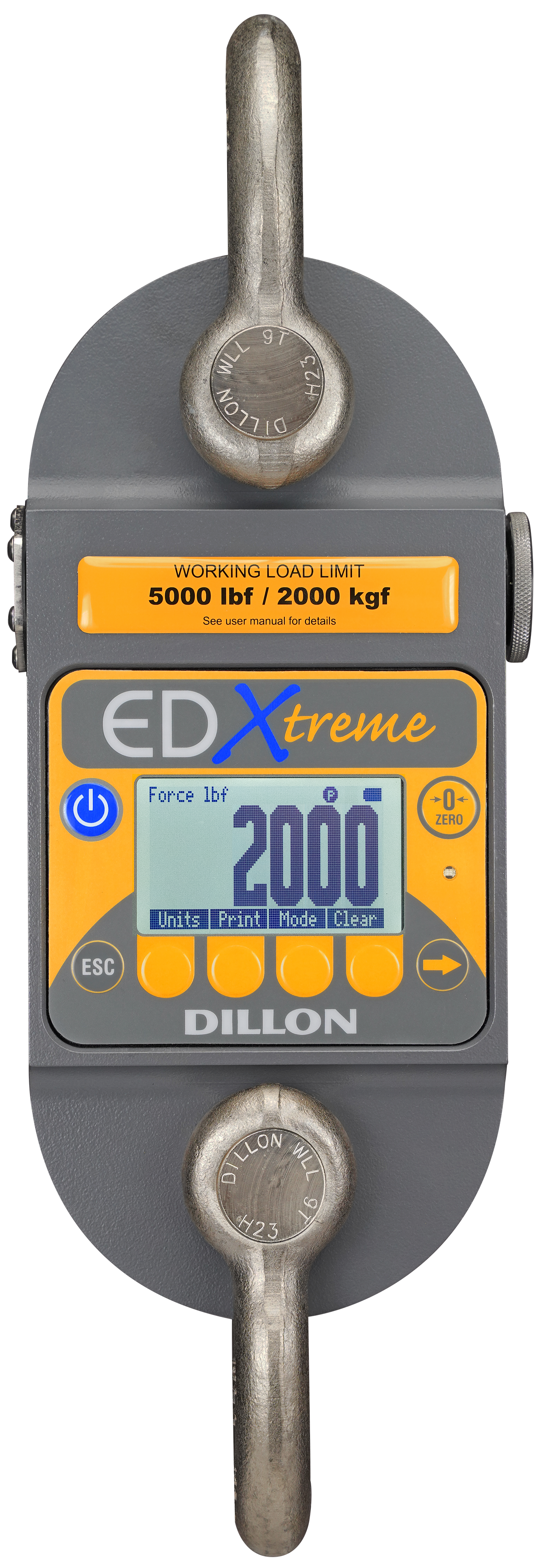

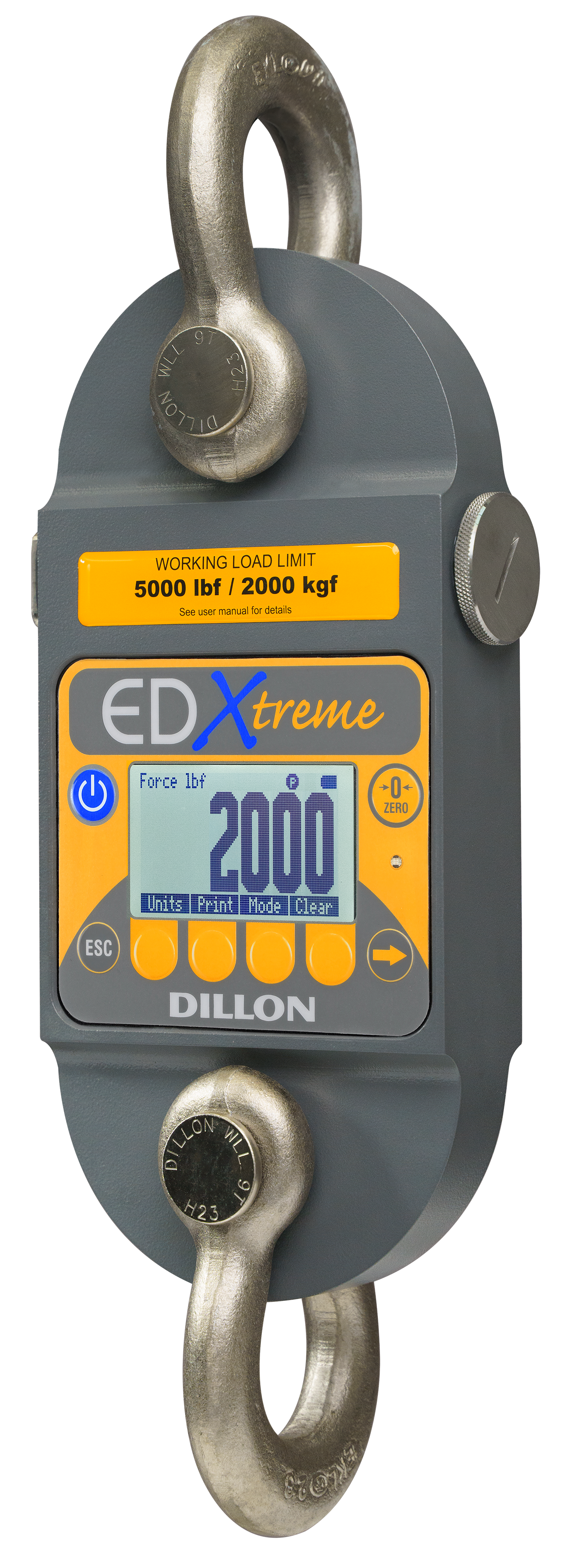

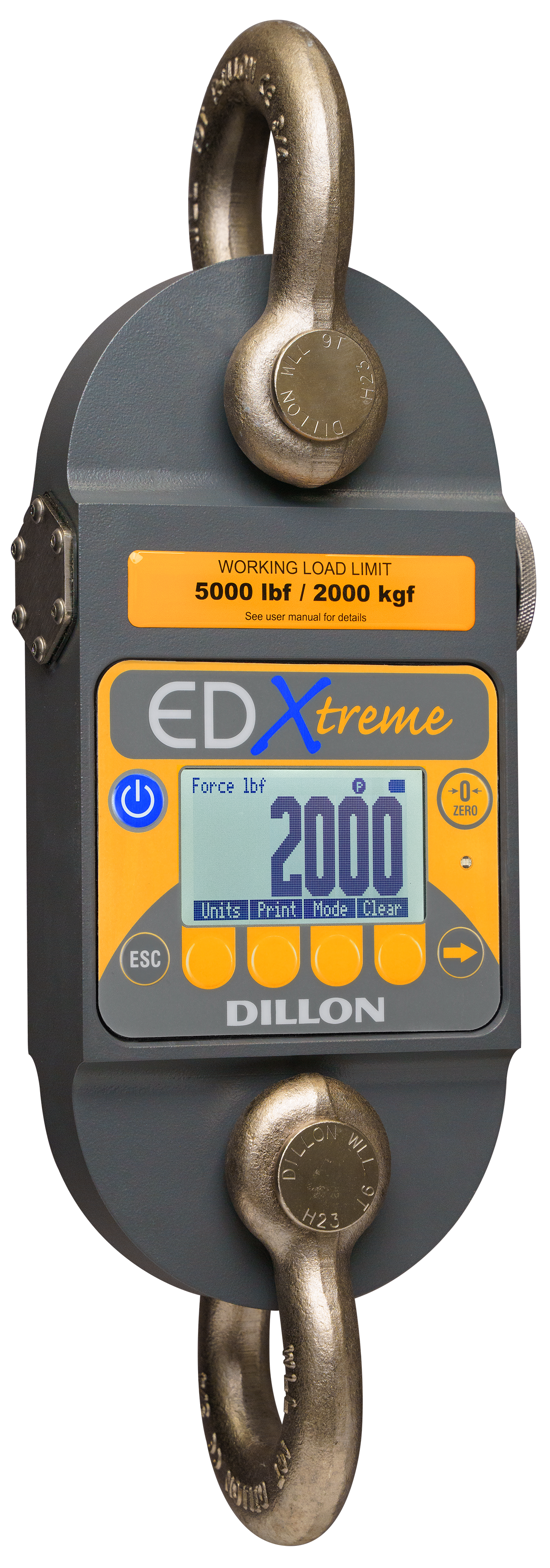

EDXtreme Blue Dynamometer

View Specifications

The EDX-Blue continues Dillon’s tradition of producing highly accurate dynamometers with a rugged construction to ensure durability. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum safety factor and an IP68 rating.

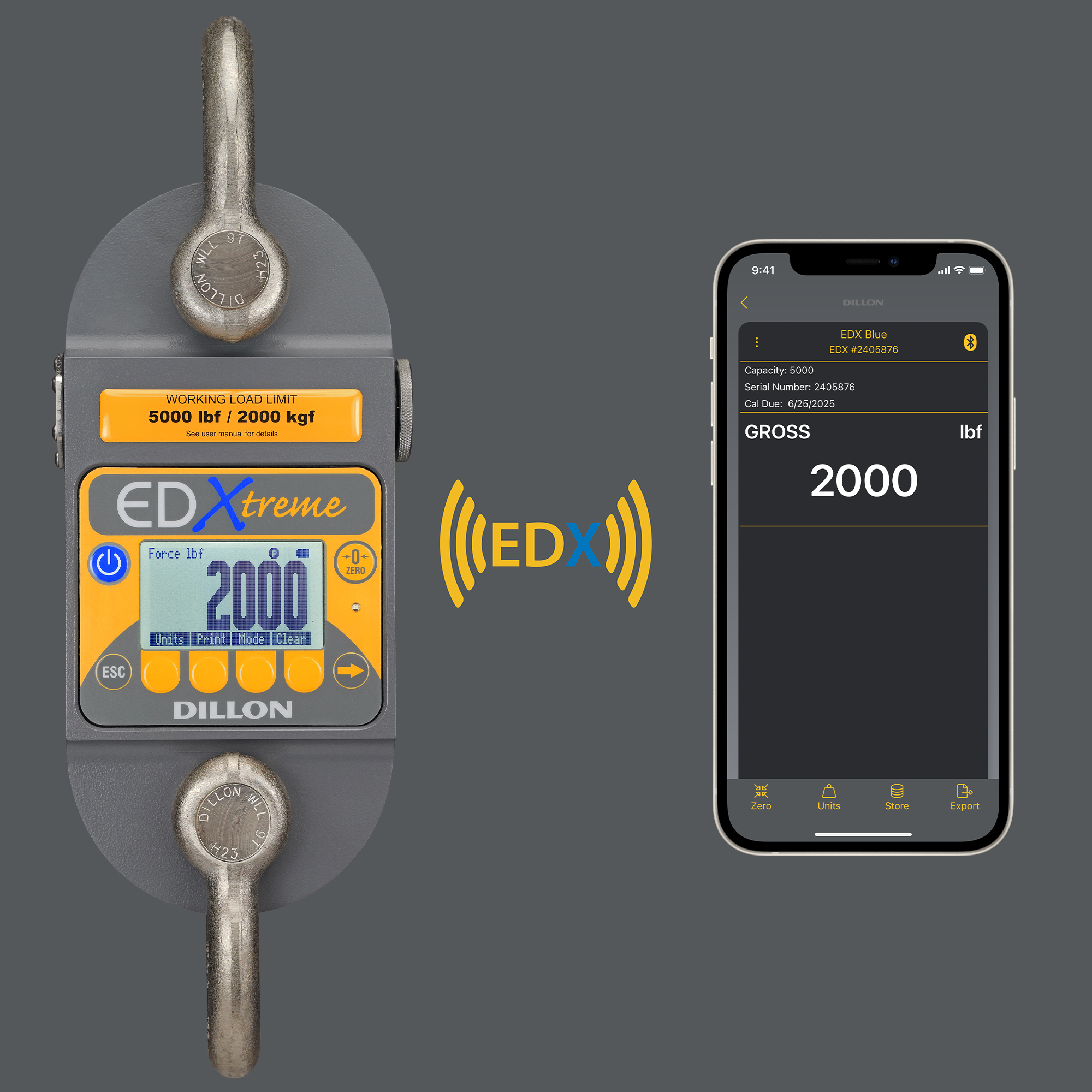

The EDX-Blue streamlines communication and exporting of data through the free Dillon EDX mobile application, compatible with Android and Apple devices. The user interface is intuitive, allowing for easy device pairing and operation without technical training. This allows for the live force to be read not only on the dynamometer display, but on a paired mobile device 400 feet away.

Data print formats can be configured both through softkeys on the unit, or easily on the paired mobile device. Export compatibility comes direct from the mobile device and supports both PDF and Excel formats.

Since 1937, Dillon Dynamometers have been chosen for the jobs where only the best will do. With the EDX-Blue, Dillon has added another varied offering to support alternative methods of monitoring and communication.

View Product Dimensions

View Available Shackle Dimensions

View Available Hook Attachment Dimensions

Specifications

Range

2,500lb to 25,000lb

Overload

EDX 1,2 & 5T = 700%
EDX 10 = 500%

Modes

Seven display modes including live & peak

Capture Rate

10Hz, 100Hz & 1000Hz

Accuracy

± 0.1% of instrument capacity

Test

BIT test enabled

Operating Range

-4° F to 158° F (-20° C to 70° C)
Wireless ranger 400ft / 120m

Protection

Hard polymer storage case included along with calibration certificate

Recalibration

Every 12 months

Proof Load

150%

Memory

Up to 255 logs

Units of Measure

lbf, kgf & Newtons

Resolution

Low / med / high (5000 resolutions)

Data Export

Bluetooth to Dillon EDX Mobile App

Battery

2 x C battery’s with 400+ hours life (backlight off)

Display

Dot-graphic LCD display supports full text and 1” high digits

Environmental

IP68
Suitable for continuous outdoor use

Approvals

CE

Why the EDXtreme Dynamometer?

High Accuracy: ±0.1% of capacity

Up to 7:1 safety factor

High Speed Data Capture from 10Hz, 100Hz & 1000Hz

Low, Med & High selectable resolution

Continuous On-board Logging with date & time

Several display modes

Choose your unit of measure: lb, kg, N or custom units

Easy to read high brightness LCD display

Truly rugged and reliable

Plug and play remote (auto connect)

Long battery life
